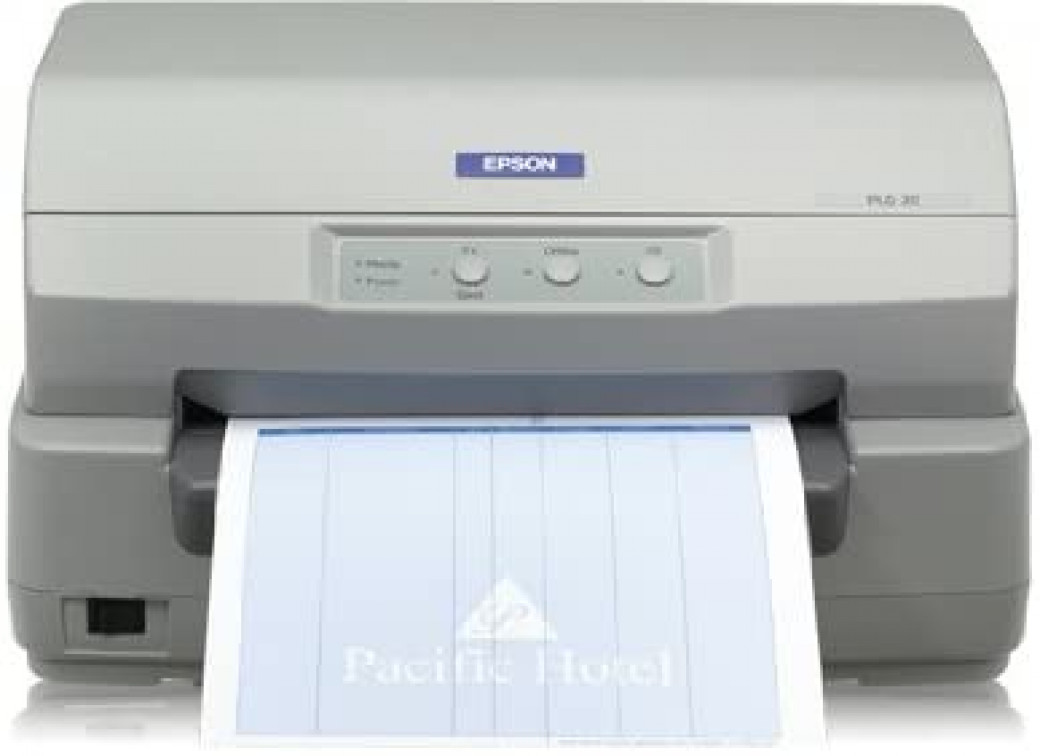

Epson PLQ20

PRODUCT DETAIL:

Print
Back to top
Print Method: 24 pin, impact dot matrix
Print Speed:
PR2 emulation
High speed draft: 480/432cps at 10/12cpi
Draft (CPS): 360/360cps at 10/12cpi
NLQ (CPS): 180/180cps at 10/12cpi
LQ (CPS): 120/144 cps at 10/12cpi
ESC/P and PPDS emulations
High speed draft: 480/ 576cps at 10/12cpi
Draft (CPS): 360/432cps at 10/12cpi
LQ (CPS): 120/144cps at 10/12cpi
Consumables
Back to top
Inked Ribbon: Type: fabric; Color: black
Ribbon Life: 5 million characters (LQ 10cpi, 48 dots/character), 10 million characters (draft 10cpi, 24 dots/character)
Printer Fonts
Back to top
Barcode:
PR2: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, Code 39, Coda bar (NW-7),Industrial 2 of 5, UPC-E
ESC/P: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Media Handling
Back to top
Feed Method: Friction feed (front manual)
Media Dimensions:
Cut sheet (single sheet): W x L = 65 x 67mm to 245 x 297mm
Cut sheet (multi-part): W x L = 65 x 67mm to 245 x 297mm
Thickness:
Cut sheet (single sheet): min. 0.065mm, max. 0.19mm
Cut sheet (multi-part): min. 0.12mm, max. 0.53mm
Weight:
Cut sheet (single sheet): min. 52 g/m 2 , max. 157 g/m 2
Cut sheet (one sheet of multi part): min. 34 g/m 2 , max. 50 g/m 2
Paper Loading: Paper path: Manual insertion; front in, front out/front in, rear out
Copy Capacity: 1 + 6 copies
Passbook:
Width: Min. 110mm, max. 241.3mm
Length:
Horizontal seam: min. 127mm, max. 220mm
Vertical seam: min. 85 mm, max. 220 mm
Total thickness: Max. 2.6mm (open passbook)
Weight: Min. 95 g/m 2, max. 116 g/m 2
Connectivity
Back to top
Interfaces: Bi-directional parallel interface (IEEE 1284 nibble mode supported), Serial, USB (2.0 compatible)
General
Back to top
Reliability:
MTBF: 10,000 (POH)
Print head life: 400 million character at 14 dots/character







Data Buffer: 64 Kb
Power Consumption:
Normal mode: Approx. 60W
Sleep mode: approx. 8W
Powered off mode: 0W
Power Source: 100 – 120V AC, 50/60 Hz (49.5 to 60.5 Hz)
Noise Level: 53 dB(A)
Dimensions: 15.11" x 11" x 8" (384 x 280 x 203 mm) (W x D x H)
Weight: 17 lbs (7.7 kg)
Color: Epson Cool White (ECW)
