Mimaki CJV30-130 Printer/Cutter (54-Inch). bataviadropship.com

bataviadropship. com

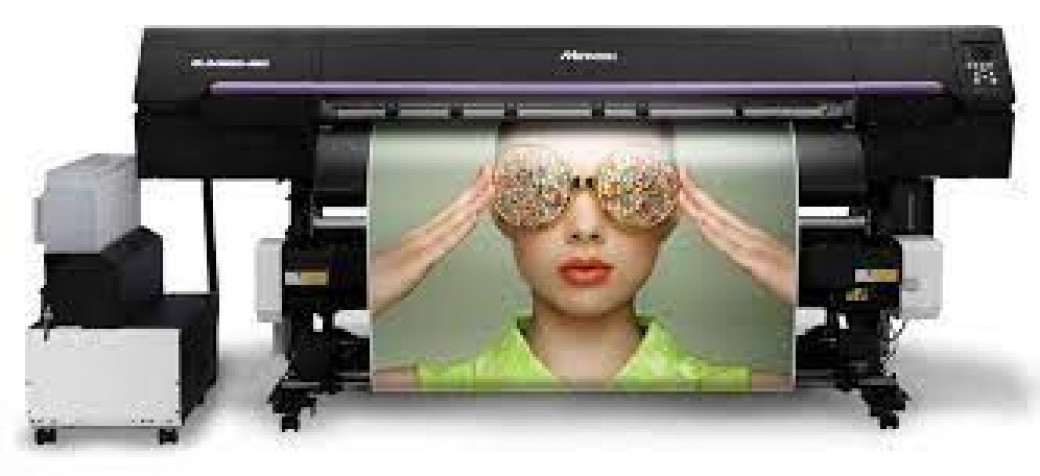

Mimaki CJV30 series printer cutters increase your productivity by integrating printing and cutting into one device. Unique features allow continuous unattended printing and cutting.

Continuous Crop Mark Detection increases cutting accuracy.
Automatic Media Clamp Function allows continuous printing and cutting.
High density, fast drying white ink widens usage of applications
UISS (Uninterrupted Ink Supply System) improves operating performance by allowing continuous unattended printing.
Up to 1440 dpi (variable dot technology)
Printing speeds:
186 sqft/hr (17.3 m2/hr) at 540 x 720 dpi, 4 pass
126 sqft/hr (11.7 m2/hr) at 540 x 1080 dpi, 6 pass
78.5 sqft/hr (7.3 m2/hr) at 720 x 1440 dpi, 8 pass
Cutting speeds:
up to 11.8 in/sec (30 cm/sec)
Simple Studio and Fine Cut software included for easy sticker making. For professional users, Raster Link Pro4 SG RIP is included as standard.
Specifications
Model CJV30-60 CJV30-100 CJV30- 130 CJV30-160
Maximum print /
cut width 610 mm (24.0″) 1,020 mm (40.1″) 1,361 mm (53.5″) 1,610 mm (63.3″)
Print resolution 540 dpi, 720 dpi, 1440 dpi
Print mode
(Scan x Feed) 540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi
720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi, 720 x 1,440dpi
1,440 x 1,440dpi
Ink Kind Exclusive solvent ink: SS21 ink, ES3 ink
Capacity 4-color mode: 440 cc cartridge x 2/color, 880 cc/color
6-color mode: 440 cc cartridge x 1/color, 440 cc/color
Media Width 620 mm (24.4″) 1,030 mm (40.5″) 1,371 mm (53.9″) 1,620 mm (63.7″)
Thickness Less than 1.0 mm
Roll weight Less than 25 kg (55 lbs.)
Roll diameter Inside: 2 inch, 3 inch / Outside: Less than φ180 mm (7.1″)
Maximum cutting speed 30 cm: 11.8″/s (42 cm: 1 6.5″/s at the angle of 45)
Cutting force 10-350 g
Applicable tools Cutter, Water based ball-point pen,
Oil based ball-point pen
Media cutting Cutting in Y direction by cutter on the head
Media heater Pre/print/post heater
Media take-up device Roll take-up device (Standard), inside/outside selectable
Command MRL-III , MGL-IIc2
Interface USB 2.0
Applicable standard VCCI class A, FCC class A, UL60950,
CE Marking (EMC directive, low voltage directive),
CB report
Power AC100V~240V, Less than 1,380VA
Operation environments 20°C~35°C, 35~65%RH (No condensation)
Dimensions
(W x D x H) 1,524 x 739 x
1,424mm
(60″ x 29.1″ x
56.0″) 1,934 x 739 x
1,424mm
(76.1″ x 29.1″ x
56.0″) 2,289 x 739 x
1,424mm
(90.1″ x 29.1″ x
56.0″) 2,538 x 739 x
1,424mm
(99.9″ x 29.1″ x
56.0″)
Weight 110kg
(242 lbs.) 130kg
(286 lbs.) 145kg
(319 lbs.)

160kg
(352 lbs.)

Warranty Information
1 years
